The first step to automating your processes.

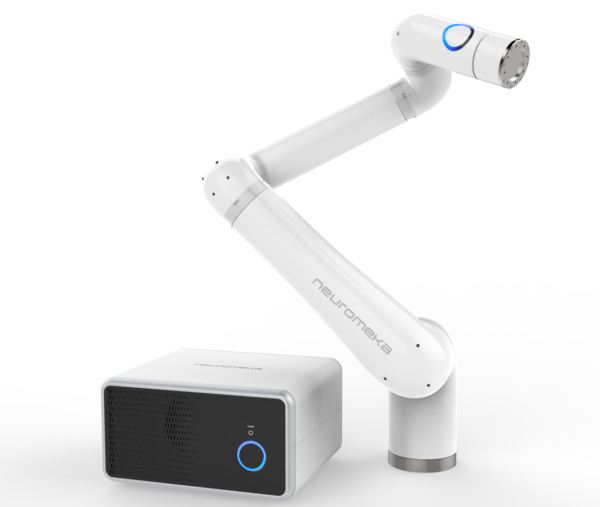

The Smart Connected Collaborative Robot.
An easy and safe low-cost solution.
Cobots (collaborative robots) propose a new paradigm on how industrial robots can be utilized in manufacturing.
There is no longer a need for barriers and shields, realizing the full potential of a true collaboration between man and machine.
This is made possible by Indy’s advanced Collision Detection Technology.
Complex programming knowledge in Robotics is not necessary, allowing any workshops or labs users to increase productivity within hours of setting up.
Indy is designed and developed by Neuromeka in Korea, which is THE most automated country in the manufacturing world.
With their technology and expertise, Indy strives to strike the perfect balance between quality and price.
|
|
<strong>Robot Arm</strong> |
Degrees of Freedom |
6-axis (all revolute) |
Payload |
7 kg |
Joint motion range |
1, 2, 3, 4 and 5: ±175 deg | 6: ±215 deg |
Maximum joint velocity |
1, 2, 3,: 160 deg/sec | 4, 5, 6 : 180 deg/sec |
Maximum tool speed |
1m/s |
Maximum reach |
800 mm (from 2<sup>nd</sup> to 5<sup>th</sup> joint) |
Repeatability |
±0.05 mm |
Weight |
24kg (excluding control box) |
|
|
<strong>Control Box</strong> |
Controller |
STEP2 / STEP3 |
HRI |
Conty App (on Android OS) |
Interfaces |
EtherCAT, EtherNET, USB CAN, RS232, RS485 |
I/O ports |
DI/O 32ch, AI/O 4ch |
Dimensions |
420 x 395 x 244 mm |
Weight |
16 kg |
Power Supply |
100 ~ 240 VAC, 50 ~ 60 Hz |
Indy will be available to the market very soon.
Please contact us directly for more details and how we can provide a solution for your processes.
Besides customised solutions, pre-packaged solutions will soon be available for selection.
Just plug and play!
