Description
Our laboratory tables are vibration-isolated work places that can be used, for example, as microscope tables and are available with a hard stone (type LTH) or optical table top (type LTO).
Bilz Laboratory Tables

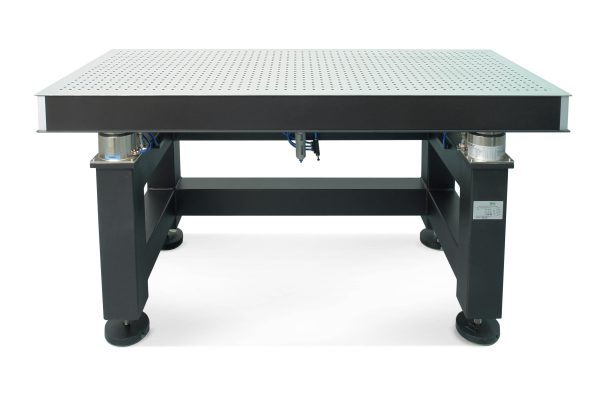

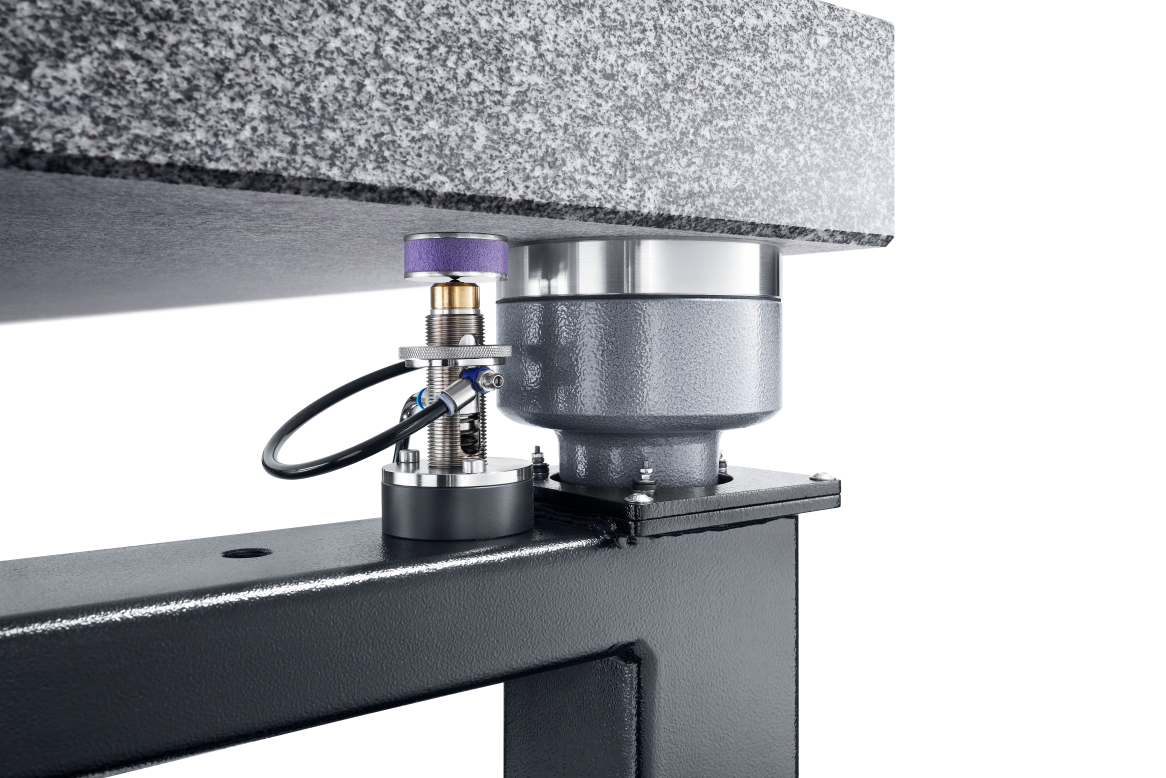

Our laboratory tables are vibration-isolated work places that can be used, for example, as microscope tables and are available with a hard stone (type LTH) or optical table top (type LTO). Disturbing vibrations from the environment are isolated through highly effective membrane air spring isolators. At the same time, the mechanical-pneumatic level control ensures that the level (± 1/ 10 mm as standard or ± 1/ 100 mm as an option) is retained even with load changes. A maintenance unit is also included, which is connected upstream for compressed air conditioning.
- LTH with hard stone as intrinsic solid base and additional mass for ideal vibration insulation
- LTO with optical plate for flexible attachment of attachments (e.g. optics)
Tailored to your applications
Individual requirements vary greatly depending on the application, particularly in the area of laboratory tables. There is a wide range of possible special designs available in terms of dimensions, potential load-bearing capacities, materials, insulating efficiency and equipment.

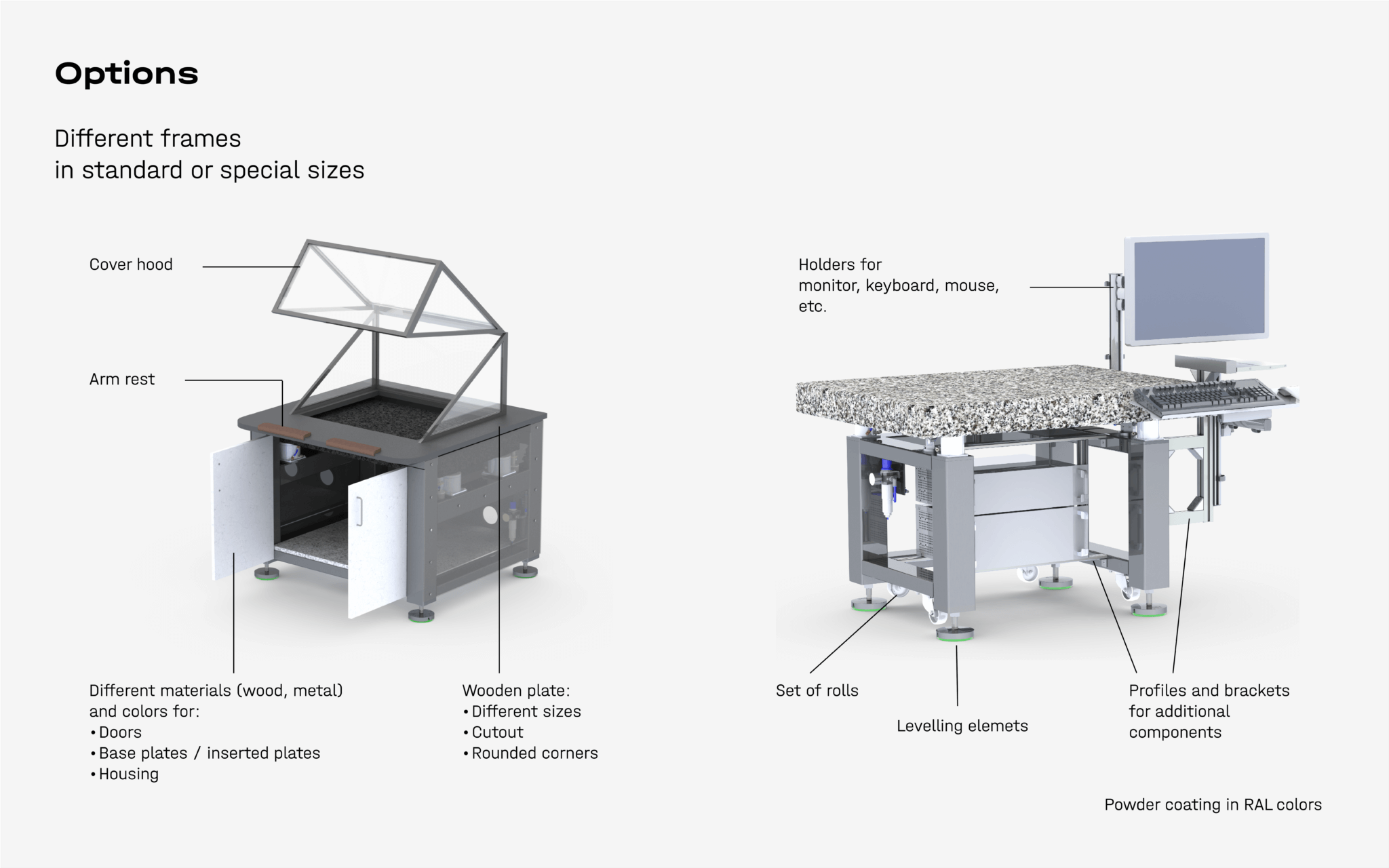

Examples for optional features:
- Special sizes
- Additional holes/threads in the table top and the subframe
- Level control (mechanical or electronic)
- Membrane or rubber air springs
- Vibration insulators perfectly integrated in the subframe
- Cover hood
- Arm rest
- Holders for monitor, keyboard, etc.
- Profiles and brackets for additional components
- Sets of rolls or levelling elements
- Different materials (wood, metal) and colors for doors, base plates/inserted plates, housing
