Brand: Hawkeye (Made in USA)

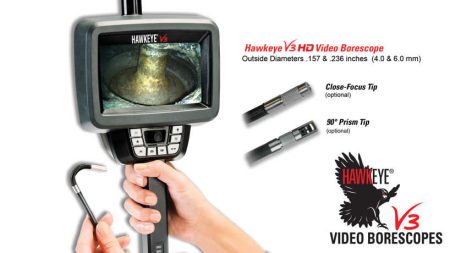

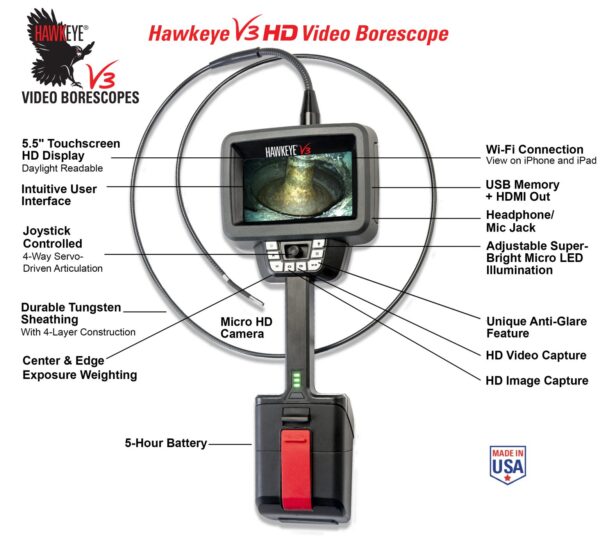

Hawkeye® V3 HD Video Borescopes simply deliver the best image quality of any borescope on the market today!
The V3 HD features a new Micro HD video camera, and custom-engineered image processor.
The 4mm and 6mm Hawkeye V3 capture HD video footage and still images that are crystal clear with vibrant, lifelike colors.
Optional Close-focus and 90° Prism tips are available.
Noteworthy improvements:
| Diameter | 4mm / 6.1mm |
| Lengths | 1.5m / 3.0m / 6.0m / 8.0m |
| Articulation | 1.5m & 3.0m Length: +/-1600 min.; 6.0m Length: +/-1400 min.; 8.0m Length: +/-1200 min. |
| Field-of-View | 700 Diagonal |
| Depth-of-Field | 18mm - Infinity |
| Depth-of-Field w/CF Tip | 6mm - 35mm |
| Direction-of-View | 00, 900 with optional Prism Tip |
| Sheath | 2 mil Tungsten Braid, durable 4-layer construction |
| Camera | 1280 x 720p CMOS |
| Display | 5.5″ HD High Brightness, Daylight Readable, Touch Screen |
| Interfaces | HDMI, USB 2.0 Flash Memory, USB Mini B for PC Interface, 3.5mm Headphone/Mic Jack |
| Power | AC Input: 100 - 240VAC, 50 - 60Hz, 1.5A Max; DC Output: 24V, 2.5A |
| Battery | 5 hrs Runtime, 14.4V, 92 Wh Lithium Ion |
| Recording Media | USB Flash Drive |
| Digital Photo Format | JPEG |
| Video Format | MPEG 4 |
| Operating Temp. | Tip: -250C to 1000C; Display Unit: -250C to 460C |
| Storage Temp. | -250C to 600C |
| Weight | 5.4 lbs. |
| Model Number | Probe Diameter (mm) | Probe Length (mm) | Articulation | Optional 90º Prism Tip | Sheath Material |
| V3 040 1500 4 | 4.0 | 1500 | 4-way | V3 PTIP 4 90 | Tungsten |
| V3 040 3000 4 | 3000 | ||||
| V3 060 1500 4 | 6.0 | 1500 | V3 PTIP 6 90 | ||
| V3 060 3000 4 | 3000 | ||||
| V3 060 6000 4 | 6000 | ||||
| V3 060 8000 4 | 8000 |
The above V3 Standard Kits come with V3 Videoscope, Carrying Case and Battery Charger.
If you need more accessories, the V3 Deluxe Kits offer exceptional value by including all optionals into one package!
They include the V3 Videoscope, Carrying Case, Battery Charger, Spare Battery, 900 Prism Tip, Close Focus Tip, Rigidizer, Stand and Neck Strap.
Contact us for more information!
