Brand: Hawkeye (Made in USA)
The Q2 is offered in 2.8, 3.9 and 6mm, with lengths up to 7.5 meters.

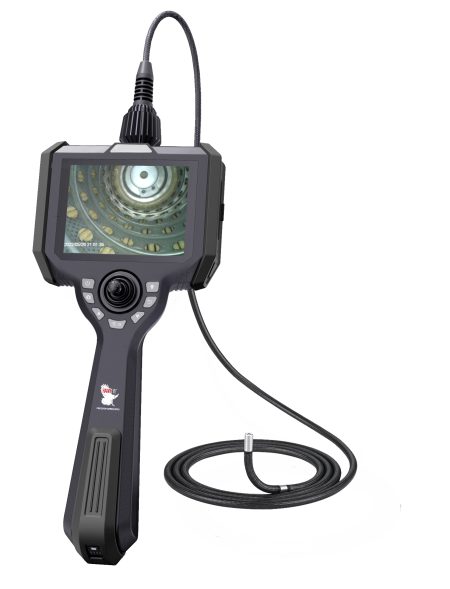

The Q2 features 4-way joystick articulation, 4-hour integrated battery, interchangeable insertion tubes, and a dual camera option.
The HD camera provides users with high-resolution images and videos which can be captured onto the micro-sd card.
| Diameter | 2.8mm / 3.9mm / 6.0mm |
| Lengths | 1.0m / 1.5m / 3.0m / 7.5m |
| Articulation | 1.5m to 2.0m Length: +/-1400 min. 1.5m to 3.0m Length: +/-1100 min. 7.5m Length: +/-900 min. |
| Field-of-View | 100° Diagonal +/- 10° |
| Depth-of-Field | 2.8mm OD: 2.5mm - infinity 3.9 and 6.0mm OD: 8mm - infinity |
| Direction-of-View | 00 |
| Direction-of-View (for Dual View Models) | 00 and 900 |
| Sheath | Tungsten Braid |
| Camera | 2.8mm: 400x400p Color Camera 3.9, 4.5 and 6mm: 1MP Color CMOS |
| Display | 5" HD Display |
| Interfaces | HDMI, USB, Micro-SD |
| Illumination | Integrated White LED |
| Battery | 4 hr. run time, Rechargeable Li-Ion |
| Recording Media | Micro-SD Card |
| Digital Photo Format | JPEG |
| Video Format | MPEG 4 |
| Operating Temp. | Probe: - 20 to +60C (-4 to +140 F) Display Unit: -10to +50C (14 to +122F) |
| Storage Temp. | - 20 to + 60 C (-4 to +140 F) |
| Weight | 2.2 lbs. |

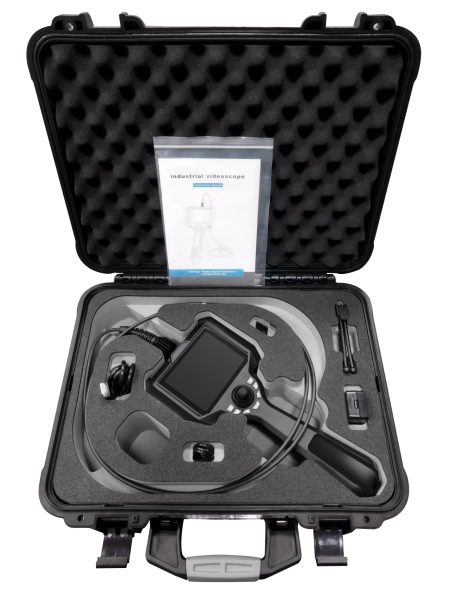

| Q2 Kit Includes: Hawkeye Q2 Video Borescope, Micro-SD Card, Micro-SD/USB converter, cables, and rugged carrying case. | |||||||
| 2.8mm | 1 m (3'3") | 4-Way | Tungsten | 0° | VQ2 028 1000 4 | ||
| 3.9mm | 1.5m (4’11”) | 4-Way | Tungsten | 0° | VQ2 039 1500 4 | ||
| 3.9mm | 3.0m (9’10”) | 4-Way | Tungsten | 0° | VQ2 039 3000 4 | ||
| 6.0mm | 1.5m (4’11”) | 4-Way | Tungsten | 0° | VQ2 060 1500 4 | ||
| 6.0mm | 3.0m (9’10”) | 4-Way | Tungsten | 0° | VQ2 060 3000 4 | ||
| 6.0mm | 7.5m (24’6”) | 4-Way | Tungsten | 0° | VQ2 060 7500 4 | ||
