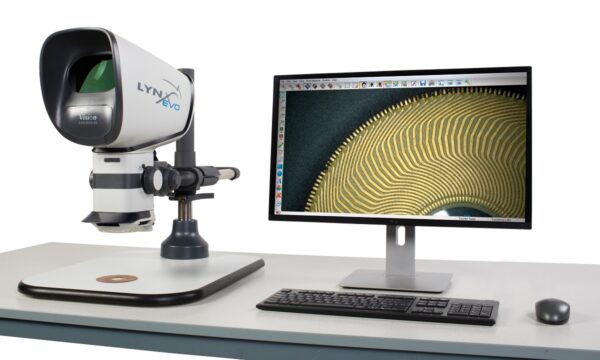

Lynx Evo

Brand: Vision Engineering (made in UK)

The patented Dynascope technology offers the user advanced ergonomics by removing the need for restrictive eyepieces. Lynx is perfect for intricate tasks requiring high-resolution stereo viewing. The optics significantly increase the freedom of head movement and provides eye relief, reducing operator stress and fatigue over long periods of time. Lynx is used in a wide range of industry applications including general manufacturing, medical devices, electronics, precision engineering, plastics and rubber. The multiple accessories available enable a wide variety of tasks including inspection, manipulation , assembly, dissection, soldering, polishing, finishing and measurement.

Lynx EVO is a high productivity stereo microscope without eyepieces, powering your productivity through stunning 3D imaging. The unique patented eyepiece-less optics of Lynx EVO liberates users from restrictive working practices, opening up a world of enhanced efficiency through unrivalled ease of use and ergonomic performance.

Specifications Order Information

Technical Data
Optical	Zoom Magnification	Illumination
Modular design allows tailoring for individual applications. 10:1 zoom ratio provides 6x – 60x magnification, increasing to 120x with supplementary lenses. Integrated HD camera/software (option) provides seamless image/video capture and annotation capabilities. Long working distance for easy sample manipulation. Flexible stand options, ideal for industrial and life science applications.	Lynx EVO incorporates Dynascope® patented optical technology. Dynascope® technology optimises head and body freedom providing 10mm side-to-side and 70mm frontto-back head freedom. 6x – 60x multiplied with objective lenses to a total magnification of 120x. 10:1 zoom ratio with indexing lever. Iris control within the zoom unit for greater control over the depth of field and contrast. Coarse and fine adjustment for fast and precision focusing.	8-point LED ringlight with intensity control. In-built rotating diffuser for contrast adjustment. 5-point LED transmitted (substage) illumination (option).

Step One: Select the objective lenses (based on your desired magnification)

Objective lens	Zoom range	Working distance	Field of view at min. zoom	Field of view at max. zoom
0.45x	2.7x – 27x	176mm	55mm	5.5mm
0.62x	3.7x – 37x	128mm	40mm	4.0mm
1.0x	6x – 60x	75mm	25mm	2.5mm
1.5x	9x – 90x	42mm	16mm	1.6mm
2.0x	12x – 120x	29mm	12mm	1.2mm

Step Two: Select stand options

Ergo Stand	Multi-axis stand

Small footprint for restricted bench space. Exceptionally stable for high magnification use. Transmitted (substage) illumination (option) permits viewing of a wider range of sample types. Floating stage (option) provides sensitive control for accurate inspection of samples; ideal for inspecting fragile samples, or for avoiding contamination by handling.	Precise and robust, ideal for industrial applications where maximum work space is desired. Extended reach permits the inspection of large samples (max. throat depth 439mm). Integrated gas strut provides counter-balanced adjustability, making operation quick and effortless. Switch between tall components and flat samples with ease.

Step Three: Options

1) Smart cam digital camera

Integrated HD camera/software (option) provides seamless image/video capture and annotation capabilities for documentation purposes, with simultaneous on-screen display (via PC). Ideal for demonstration or training.
Easy convenient image/video capture while retaining both optical paths for stereo viewing.
USB2.0 interface for easy connectivity.

Camera Data
Sensor type	CMOS
Resolution (W x H)	1600 x 1200 pixels
Sensor size	1/3”
Pixel size	2.8μm
Colour depth	8-bit
Refresh rate (fps)	18.3 fps max.
File formats	BMP, JPEG, PNG and AVI
Supplied software	uEye Cockpit(Other solutions available)

uEye Cockpit software

The included software provides easy annotation and quick reporting of inspected products. Annotations can be loaded as separate files and so can be used for template checking.
Easy image capture in compressed JPEG, PNG, or uncompressed BMP format.
Record video in highly compatible AVI format, allowing a high level of control over movie clips.

DimensionOne™ (Optional measuring software)

DimensionOne™ is a powerful software solution for Lynx EVO, providing enhanced annotation, as well as on-screen measurement and dimensioning capabilities. DimensionOne™ comes with a CD and calibration artefact for easy on-screen measurement. Allows the operator to view a subject from an angle of 34° from vertical, which can be rotated through to 360° enabling a complete stereo view of 3-dimensional subjects

2) 360° Rotating View

	360° rotating view
Zoom range	Working distance	Field of view at min. zoom	Field of view at max. zoom	Viewing angle
4.2x (16x*) – 42x	35.5mm	10.2mm*	3.8mm	34° from vertical

Allows the operator to view a subject from an angle of 34° from vertical, which can be rotated through to 360° enabling a complete stereo view of 3-dimensional subjects.

The 360° rotation provides enhanced observation for many applications, including electronics, mechanical, medical and plastics components.
At 34° angle allows detail to be seen at the base of any vertical components or features.
Simply switch between 360° rotating view and a conventional direct view for ultimate convenience.
Includes integrated 8-point LED ringlight and objective lens.
