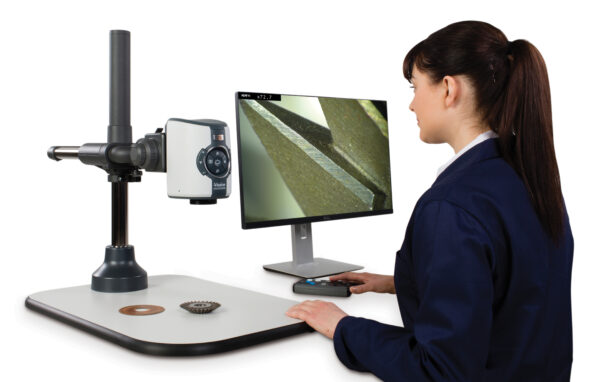

Unlock the power of full-HD imaging with the EVO Cam High performance digital microscope.
Full-HD live Video Imaging (1080p/60fps) brings to life a microscopic world in stunning details, with magnification options up to 300x and full auto focus to ensure ultra-sharp imaging at all times.
Capture full-HD images at the touch of a button without the need of a PC.
Highlights
Precision objective lenses
Ultra-high resolution and contrast, optimised for precision magnification work with
definition excellence. Anti-reflective coating and 52mm filter thread.
| Objective Lens | 0.45x | 0.62x | 1.0x | 1.5x | 2.0x |
| Magnification Zoom Range | 2.3x - 68x | 3.1x - 93.7x | 5x - 151.2x | 7.6x - 226.8x | 10x - 302.4x |
| Working Distance (mm) | 160 | 106 | 85 | 43 | 29 |
| Field of View at min. zoom (mm) | 241 x 134 | 173 x 96 | 88 x 57 | 45 x 36 | 37 x 27 |
| Field of View at max. zoom (mm) | 7.8 x 4.2 | 5.5 x 3.1 | 3.5 x 2 | 2.3 x 1.2 | 1.5 x 1.0 |
Wide-field objective lenses
Wide field of view, suited for larger subjects.
An extra-long working distance provides maximum flexibility and large zoom range
for flexible oprations. Anti-reflective coating and 52mm filter thread.
| Objective Lens | 4 dioptre | 5 dioptre |
| Magnification Zoom Range | 1.71x - 51.41x | 2.12x - 65.5x |
| Working Distance | 245mm | 197mm |
| Field of View at min. zoom | 293mm x 171mm | 232mm x 135mm |
| Field of View at max. zoom | 10mm x 5.5mm | 8mm x 4.5mm |
Camera specification
Leading specification optical performance makesEVO Cam a supremely powerful
imaging solution.
| Camera zoom | 30x optical : 2x digital |
| Camera resolution | Full-HD 1080p, 1920x1080, 1/2.8" CMOS |
| Frame rate | 60fps |
| Output | HDMI out |
| saved file type | .bmp |
